GR2 (3U)

70.00 (excl. VAT)
GR2 (3U)

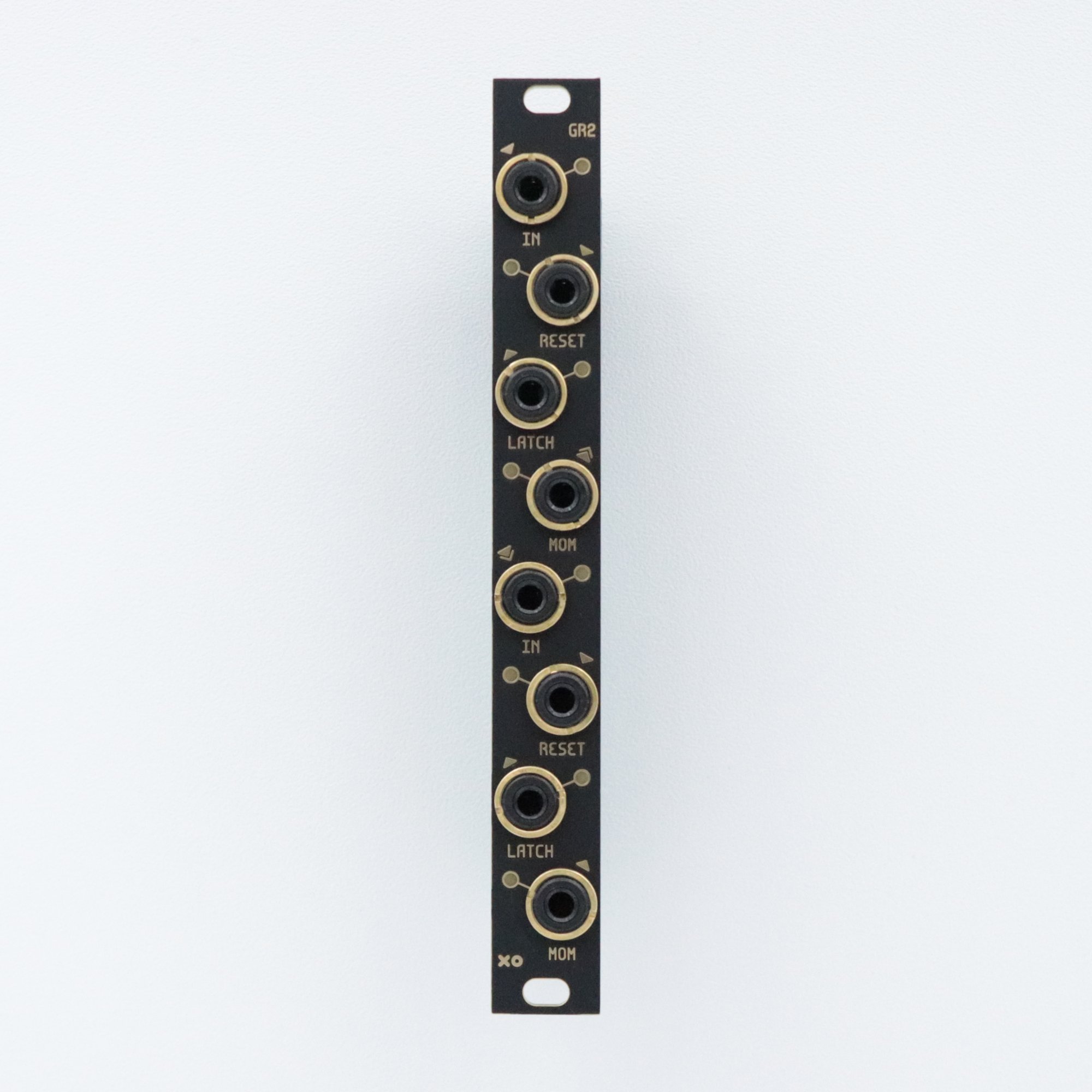

Eurorack modular synthesizer XODES GR2 dual gate randomizer 1U 12HP 3U 3HP synth module clock gate trigger random latching momentary reset

Dual Gate Randomizer

GR2 has 2 identical channels, with Gate and Reset inputs, as well as Momentary and Latching outputs.

Randomization is defined independently for each channel on the rising edge of the Gate input. The Momentary output of the top channel is normalled to the next Gate input, which allows generating 2 sets of random, yet synced signals.

The Reset inputs are asynchronous and will force outputs to 0. As long as the Reset input is high, the Gate input will be inhibited, which can be handy to control when to allow the random signals to be generated.

GR2 doesn't have to be used with Gates only, and will respond to Triggers, Clocks, and can even be used with the square output of a VCO to create digital noise, like in vintage computers or arcade games.

A 1U version of this module is available.

You can ask for a free 1HP blank when buying the 3U version by adding a comment during checkout.


Quickstart guide

GR2 3U on ModularGrid


Height 3U
Width 3HP
Depth 35mm
Max power +12V : 50mA
-12V : 0mA
